Projects & Services

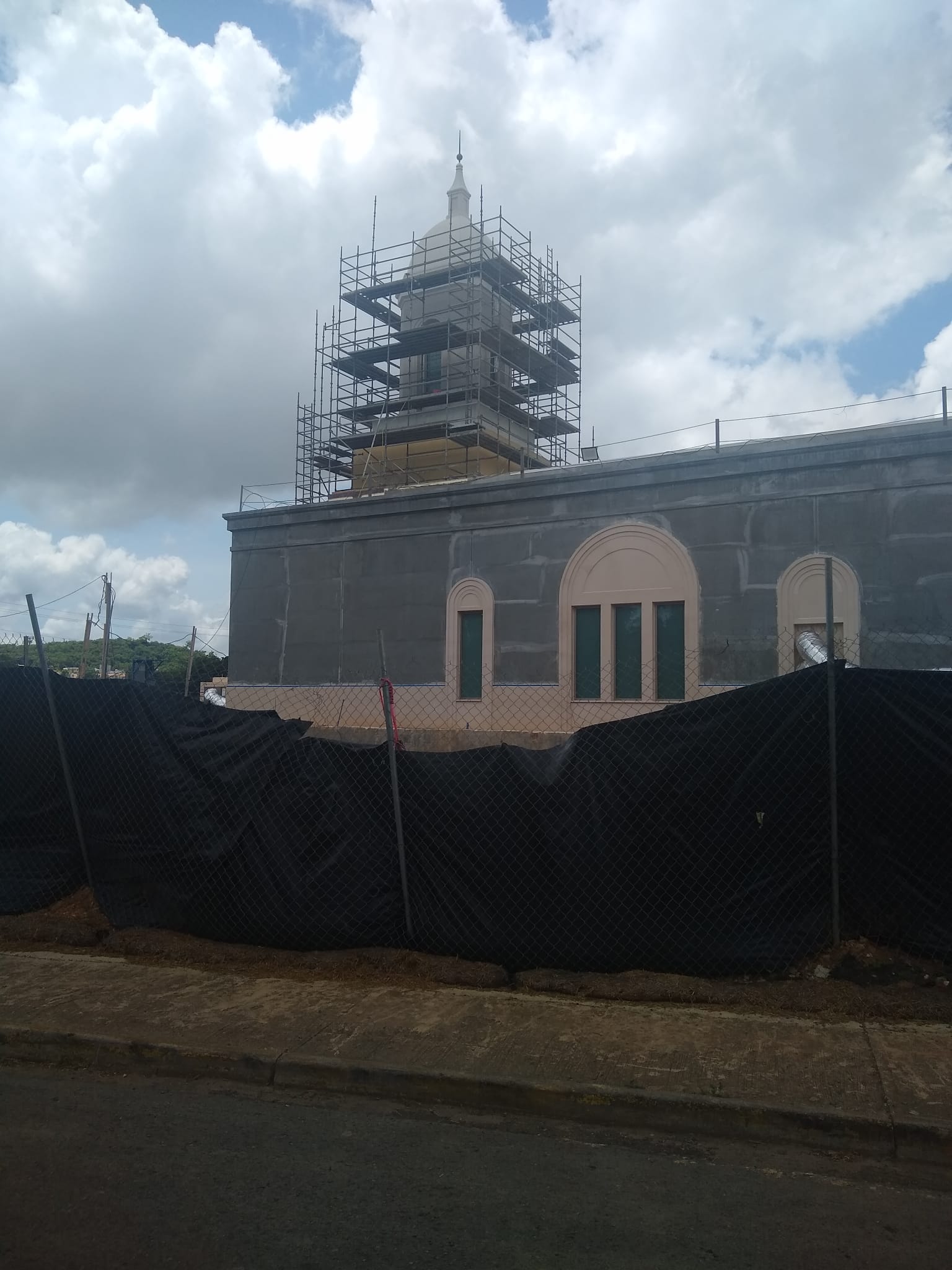

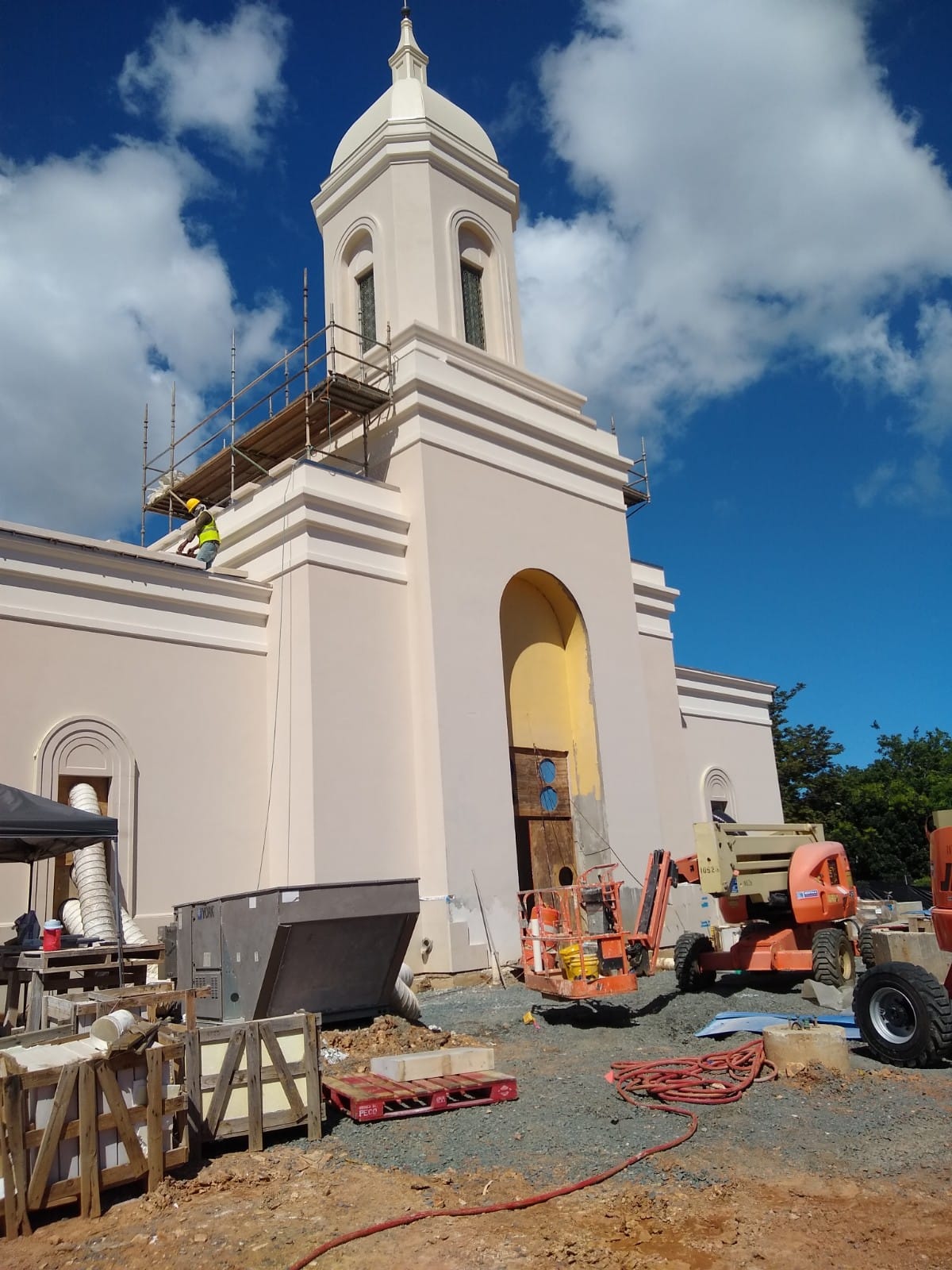

Construction Phase and Completed Project

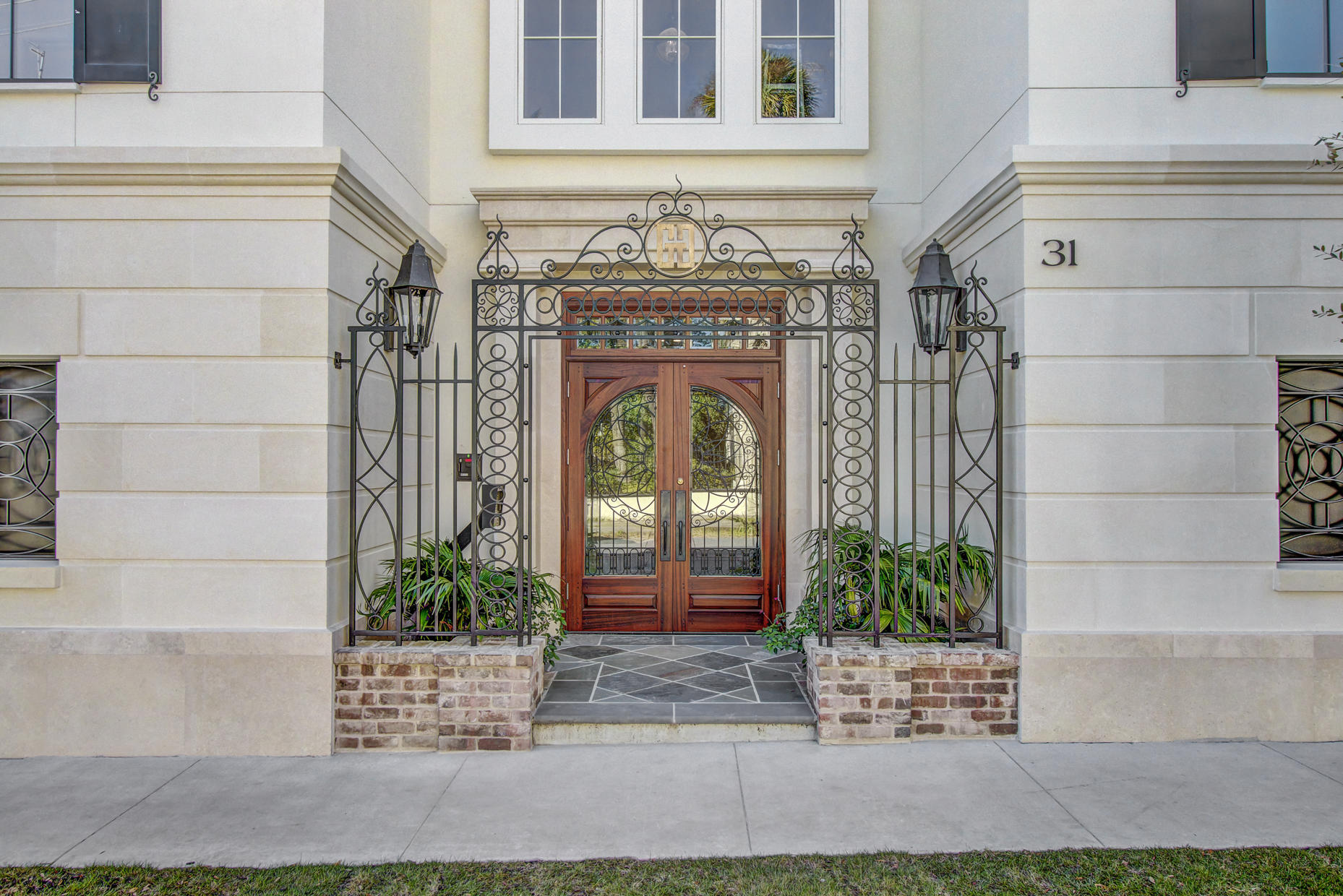

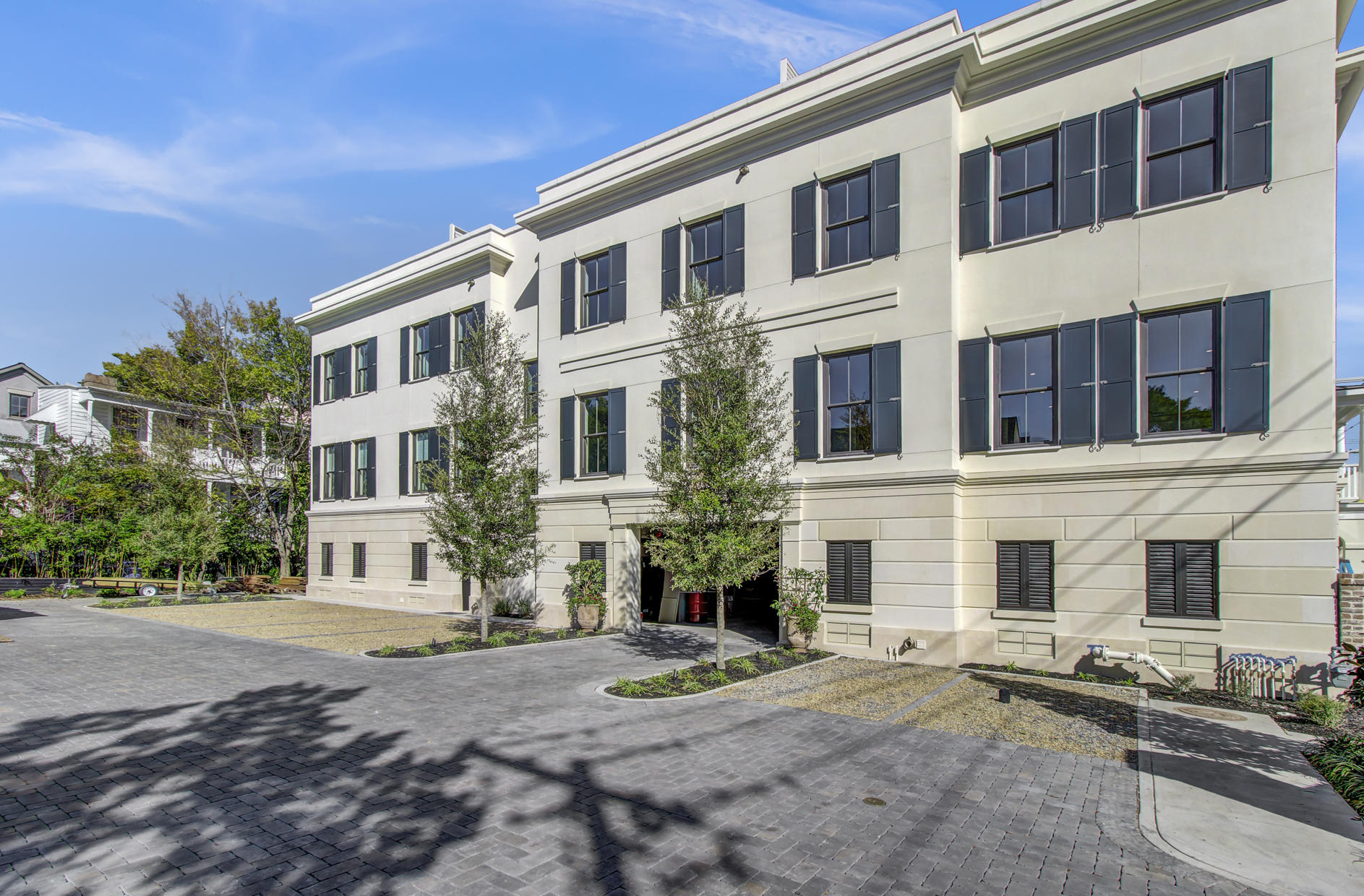

Design supply and installation of limestone by I.A.E.

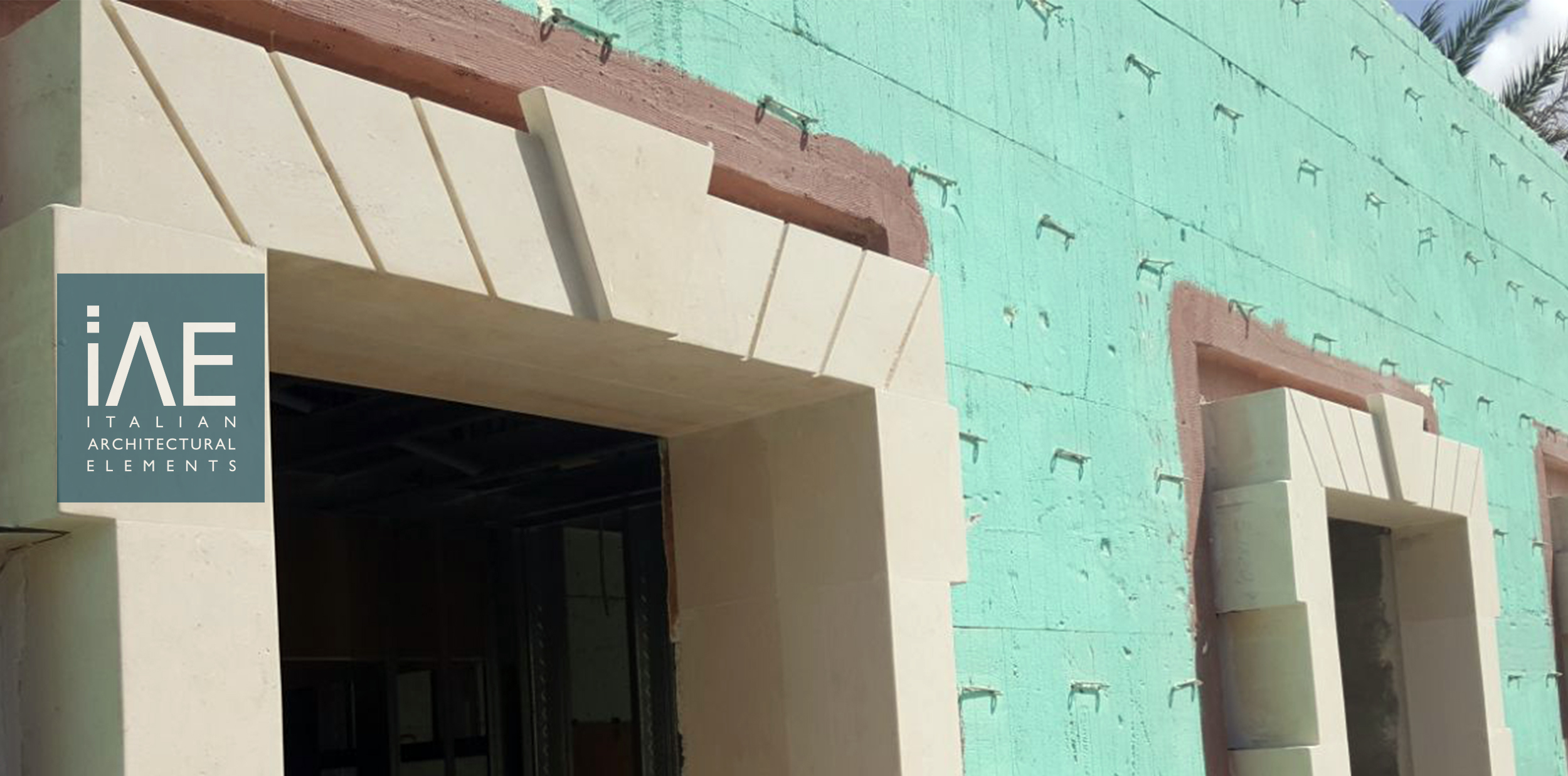

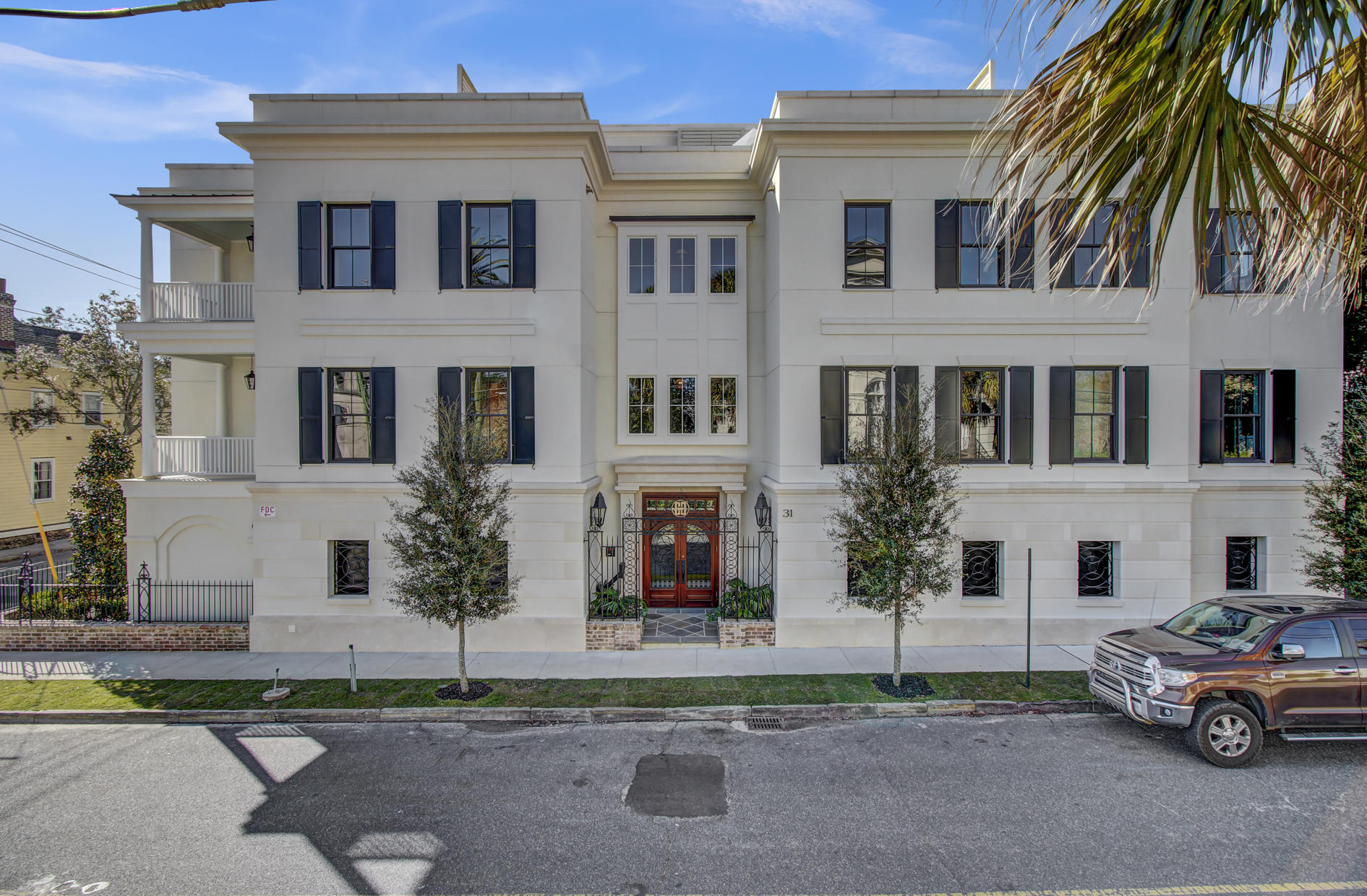

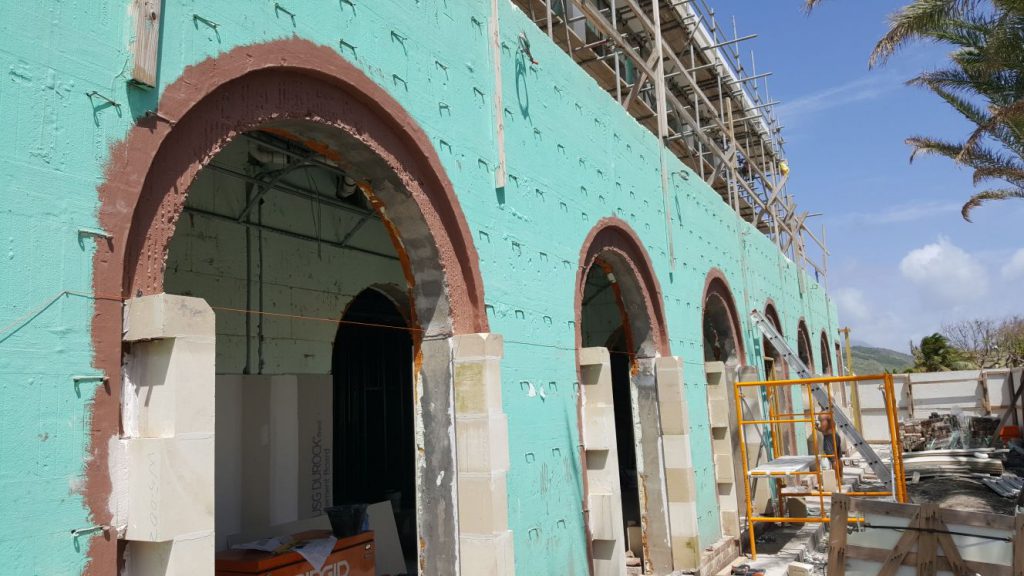

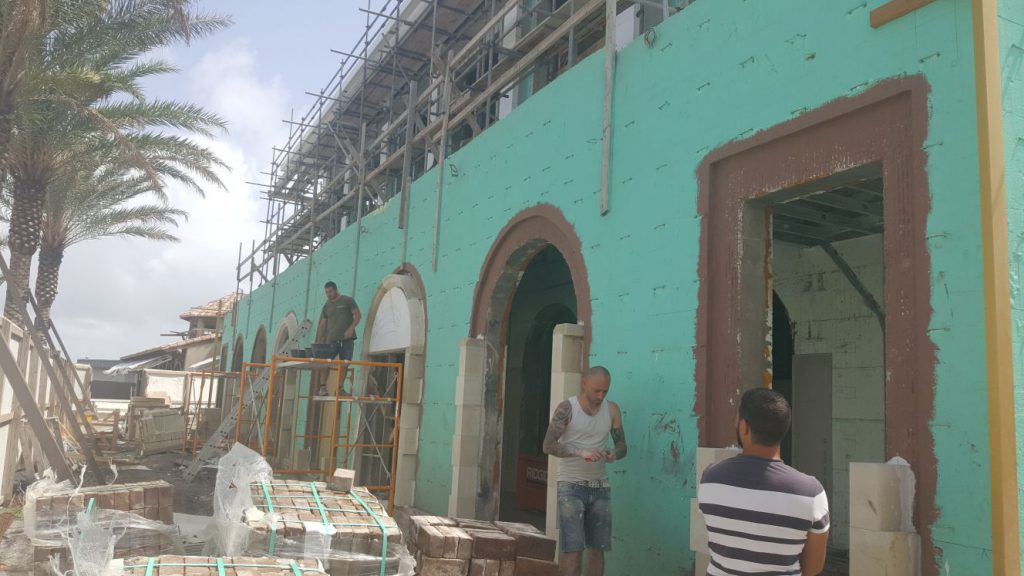

1. The ICF structure used to build this english colonial style building, home of the Custom Authority at the Christophe Harbour Marina, had many details that had to be designed with the intention to accommodate the Italian limestone architectural elements.

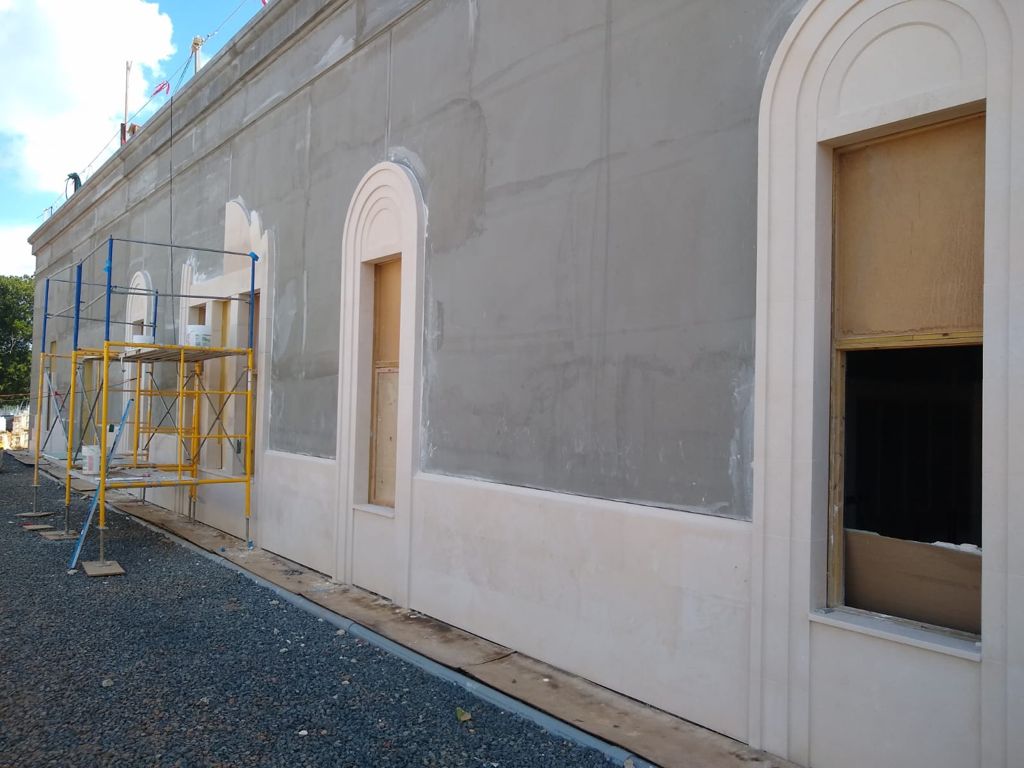

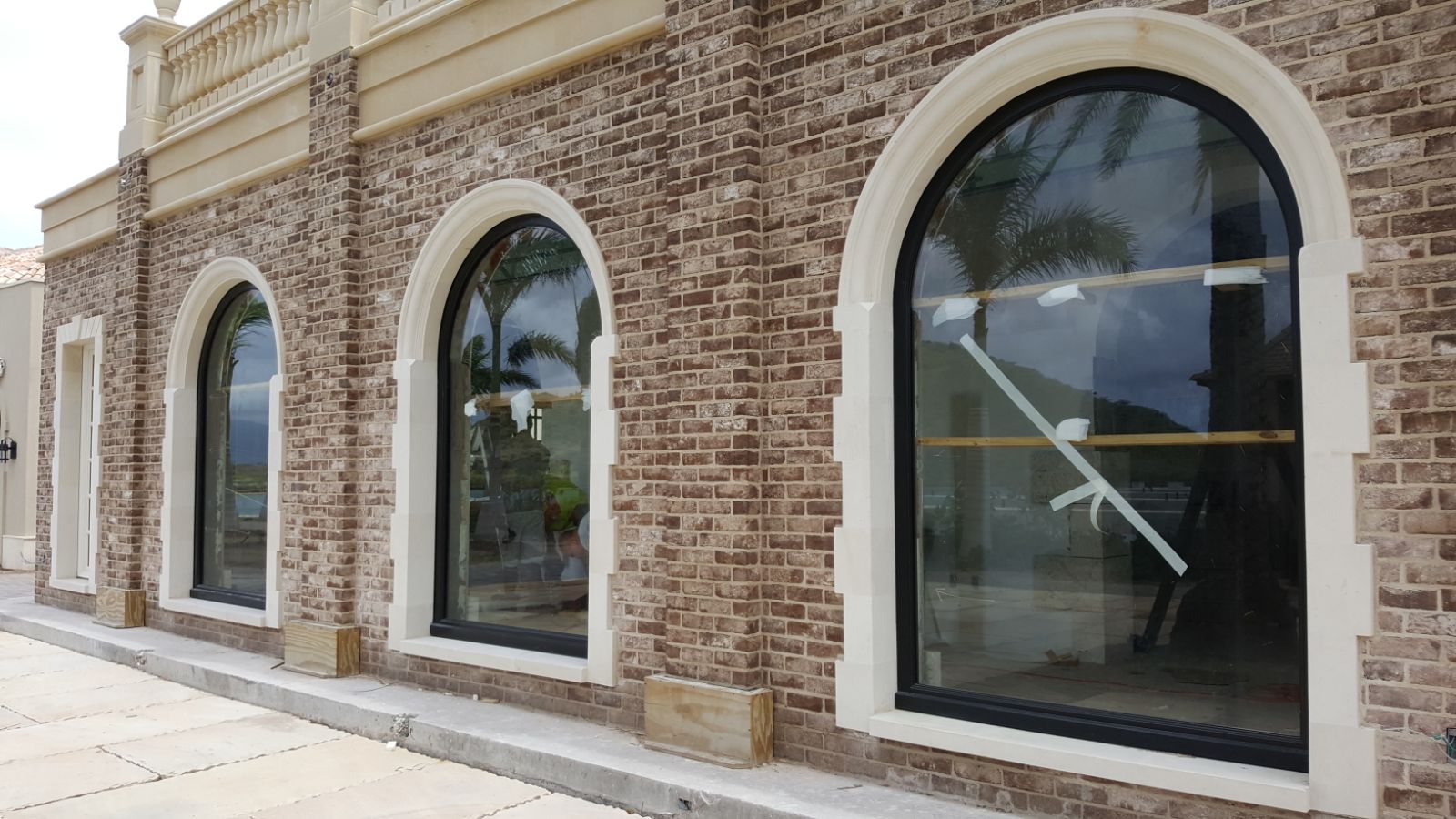

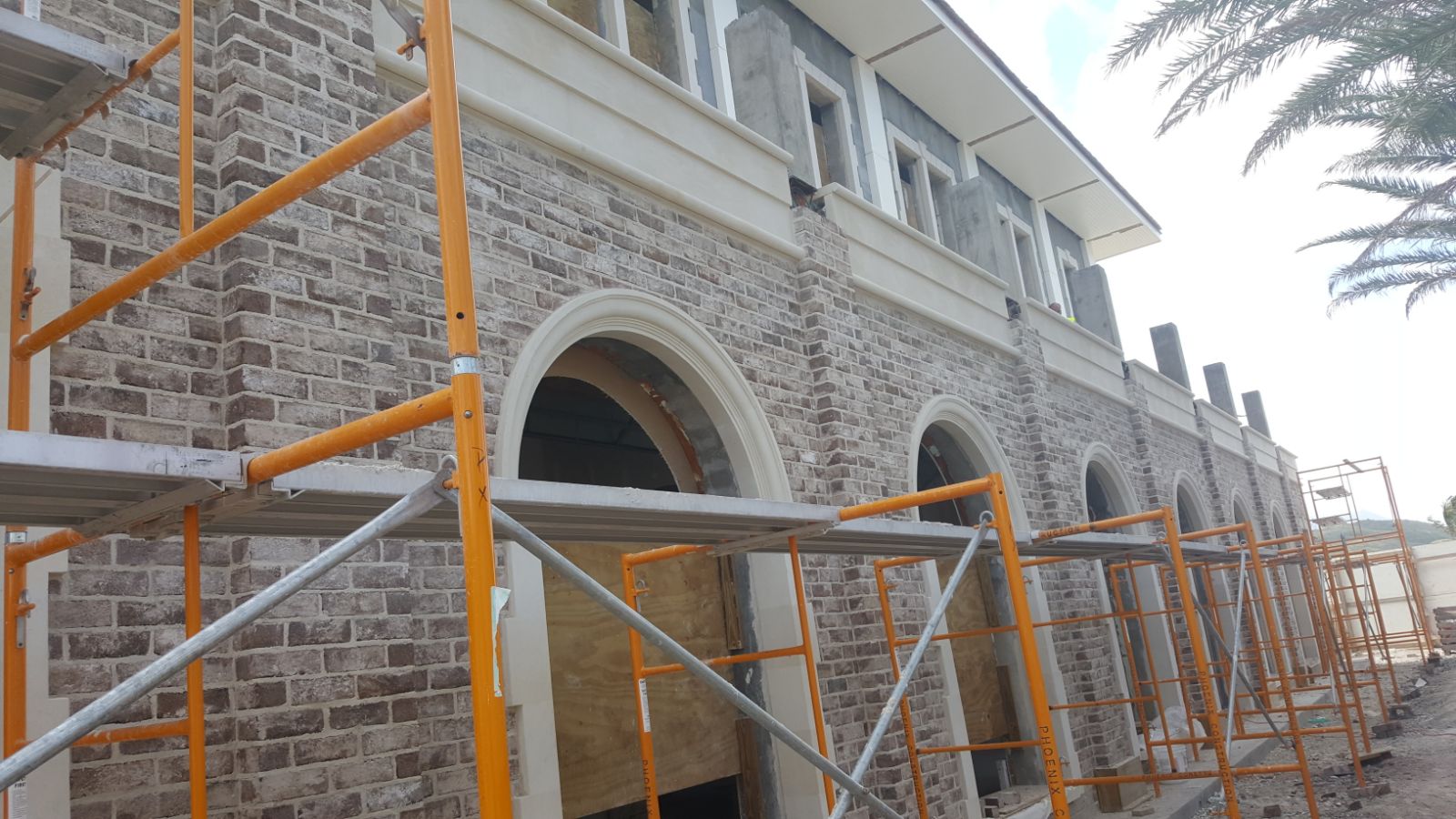

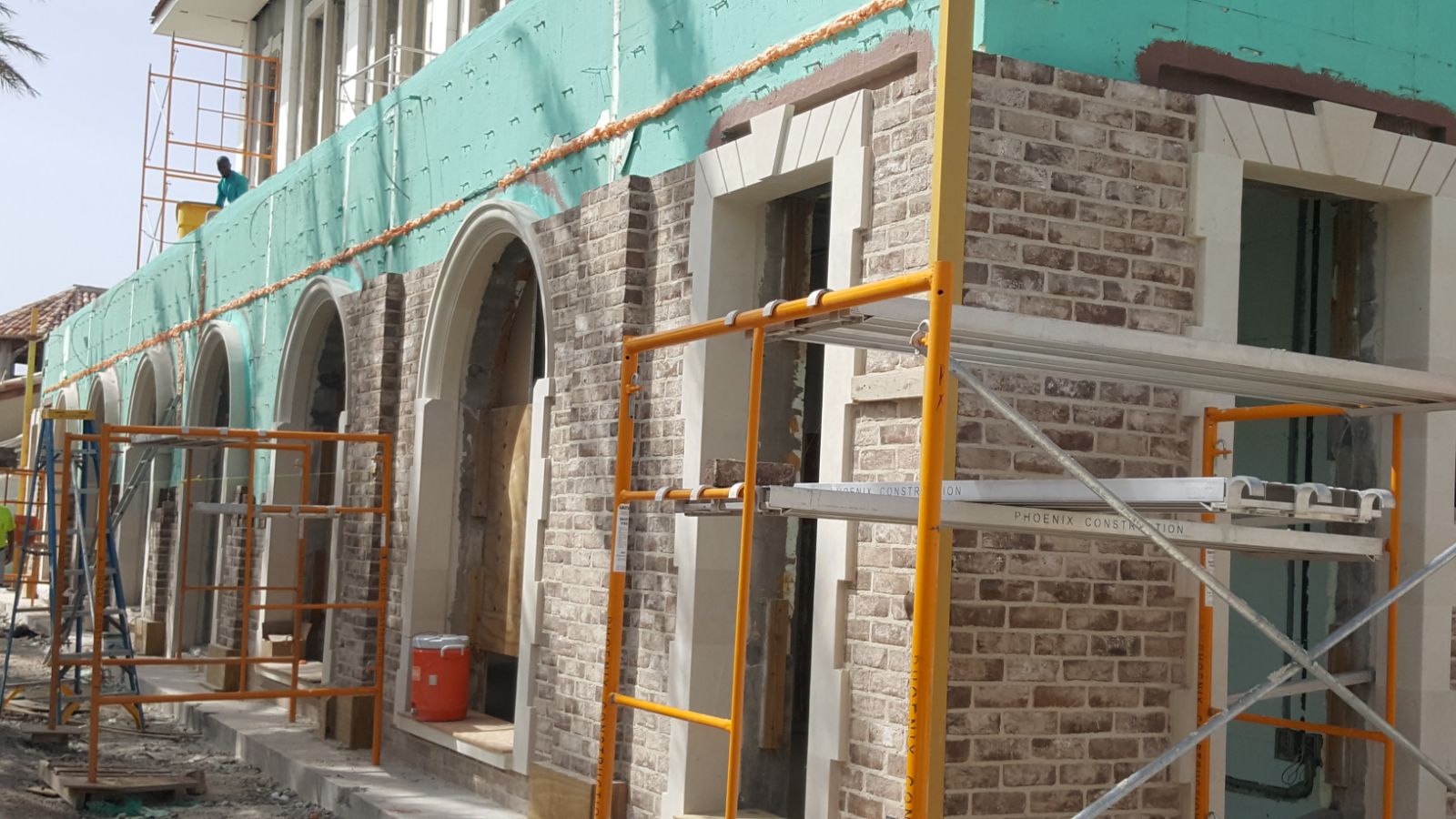

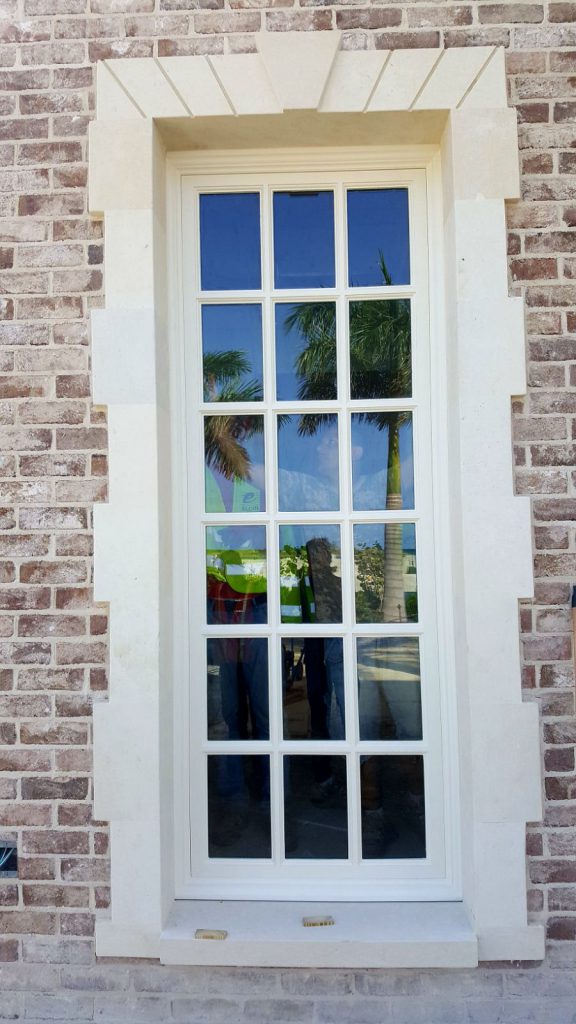

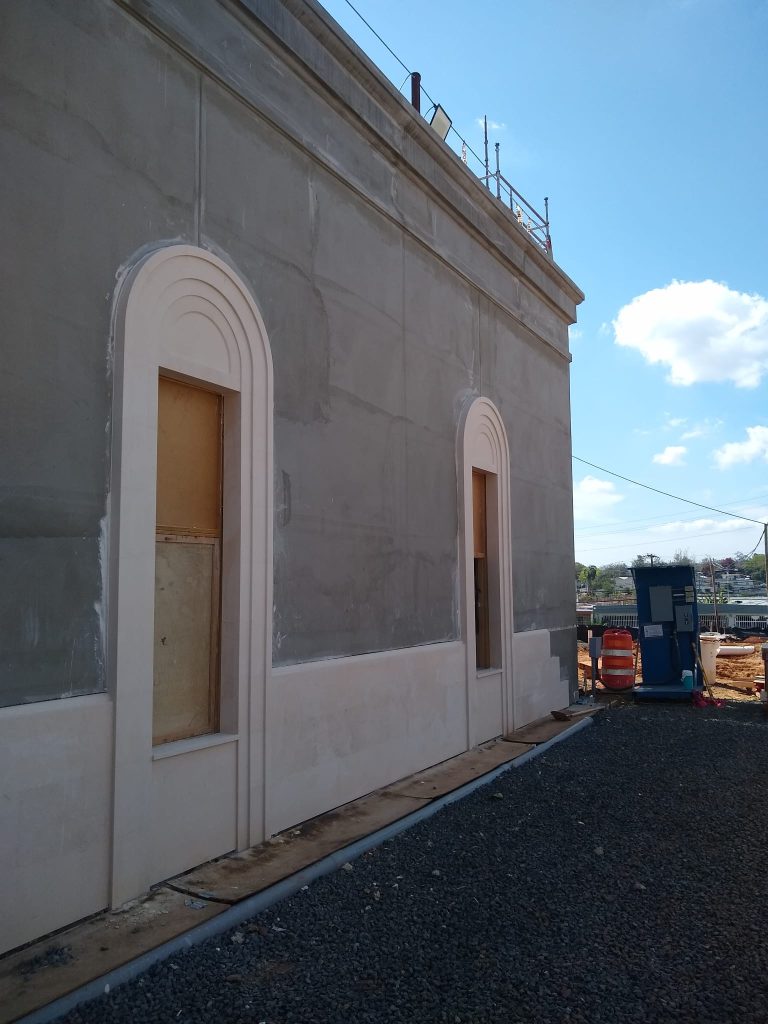

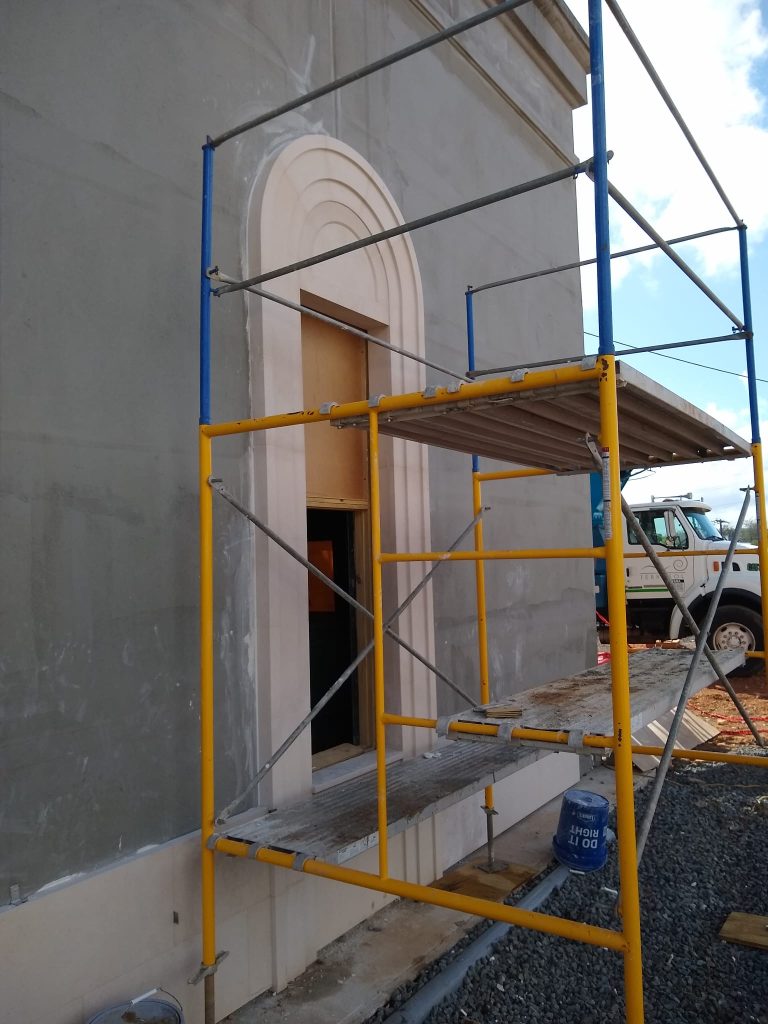

2. Windows and doors stone surrounds were installed with a special thinset mortar into a recess of the ICF, leaving the stone with the necessary overlapping to accommodate doors, windows and bricks on the face of the wall.

3. The dimensions of the stone elements composing the balcony parapets were built with stones of large dimensions obtaining, thanks to the seamless joints, a monolithic appearance of the entire structure.

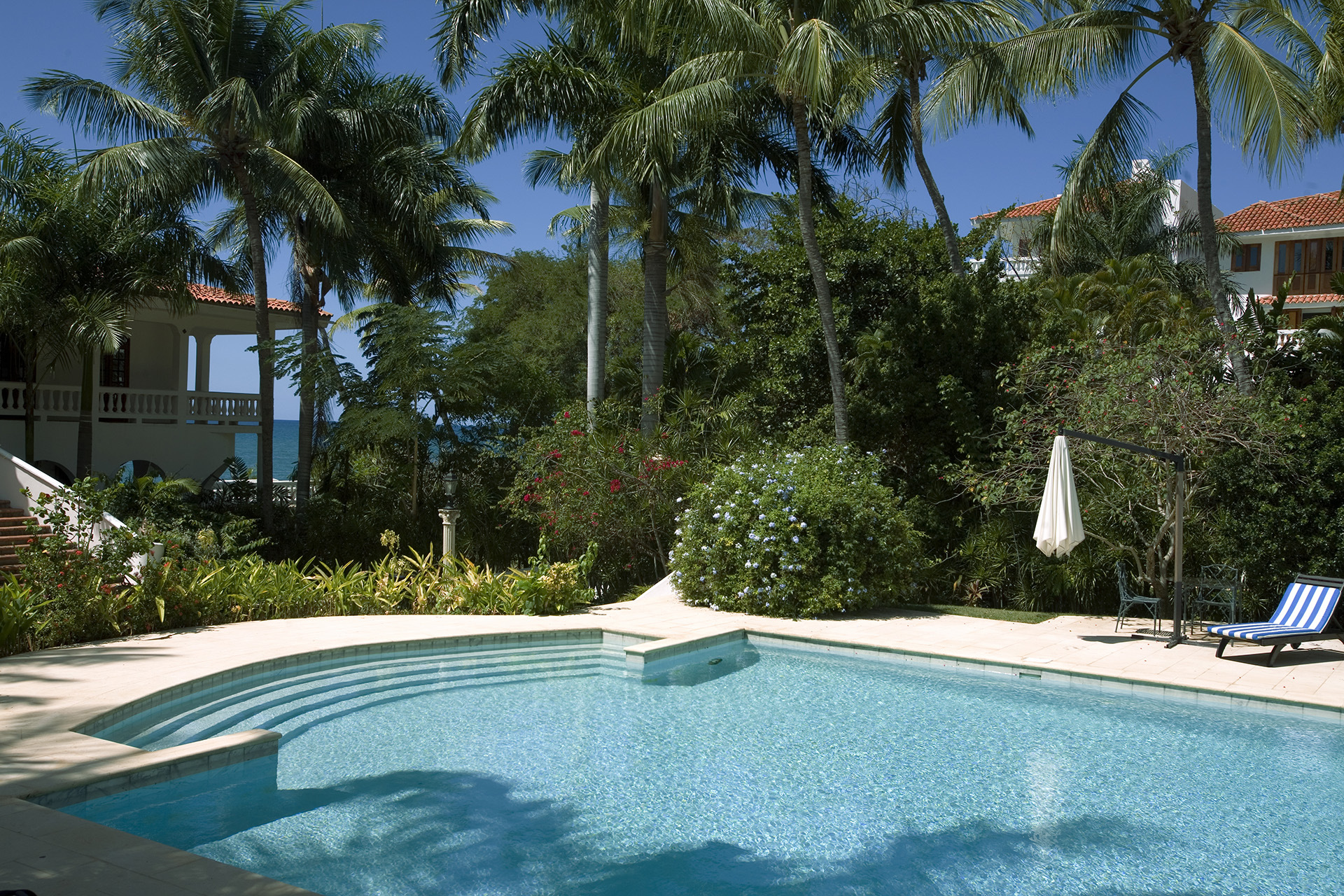

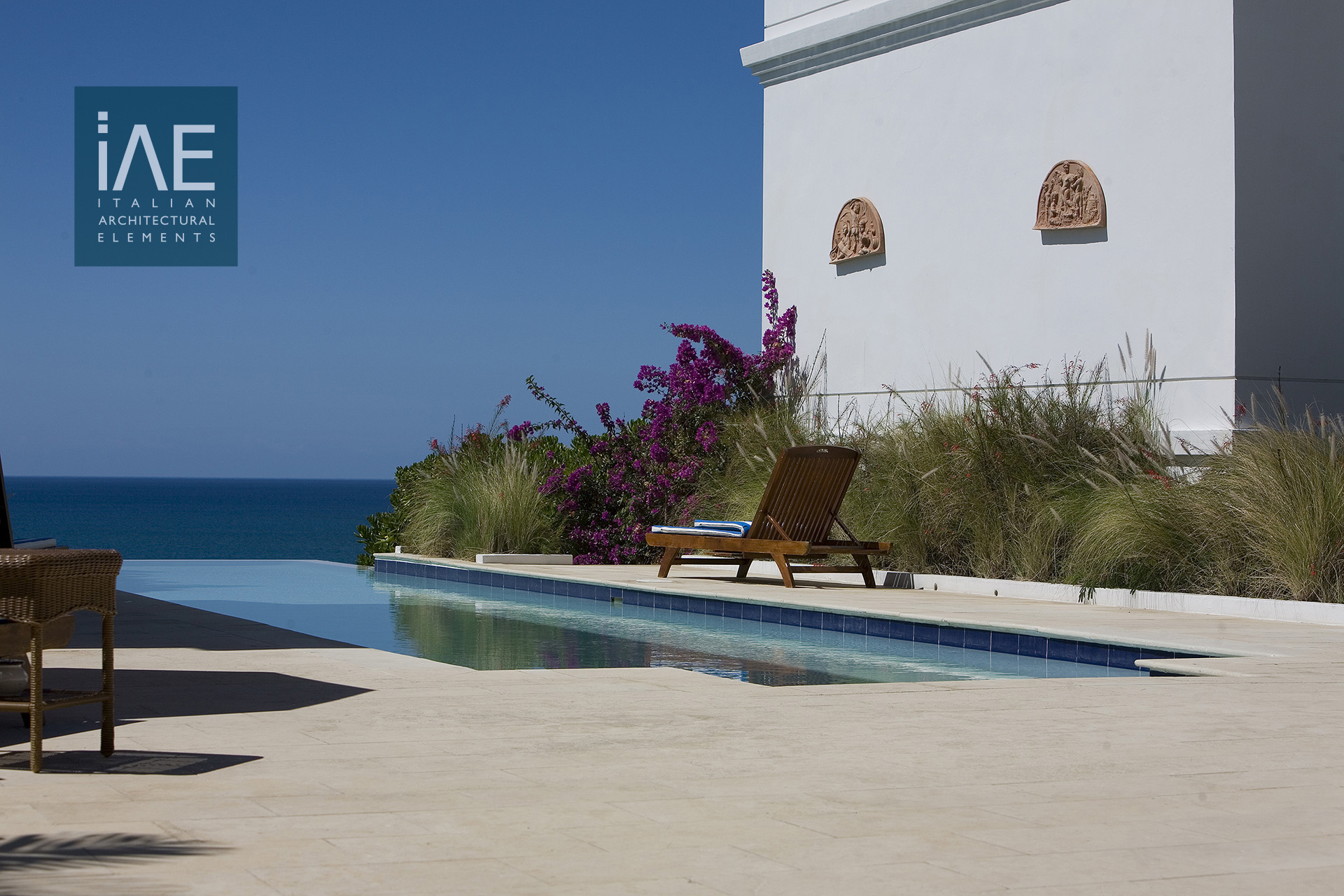

The pool and jacuzzi decks of this boutique hotel were restored using the Golden Italian Ionian Limestone, ideal for barefoot walking. This stone does not contain iron minerals permitting a stable temperature of the surface.

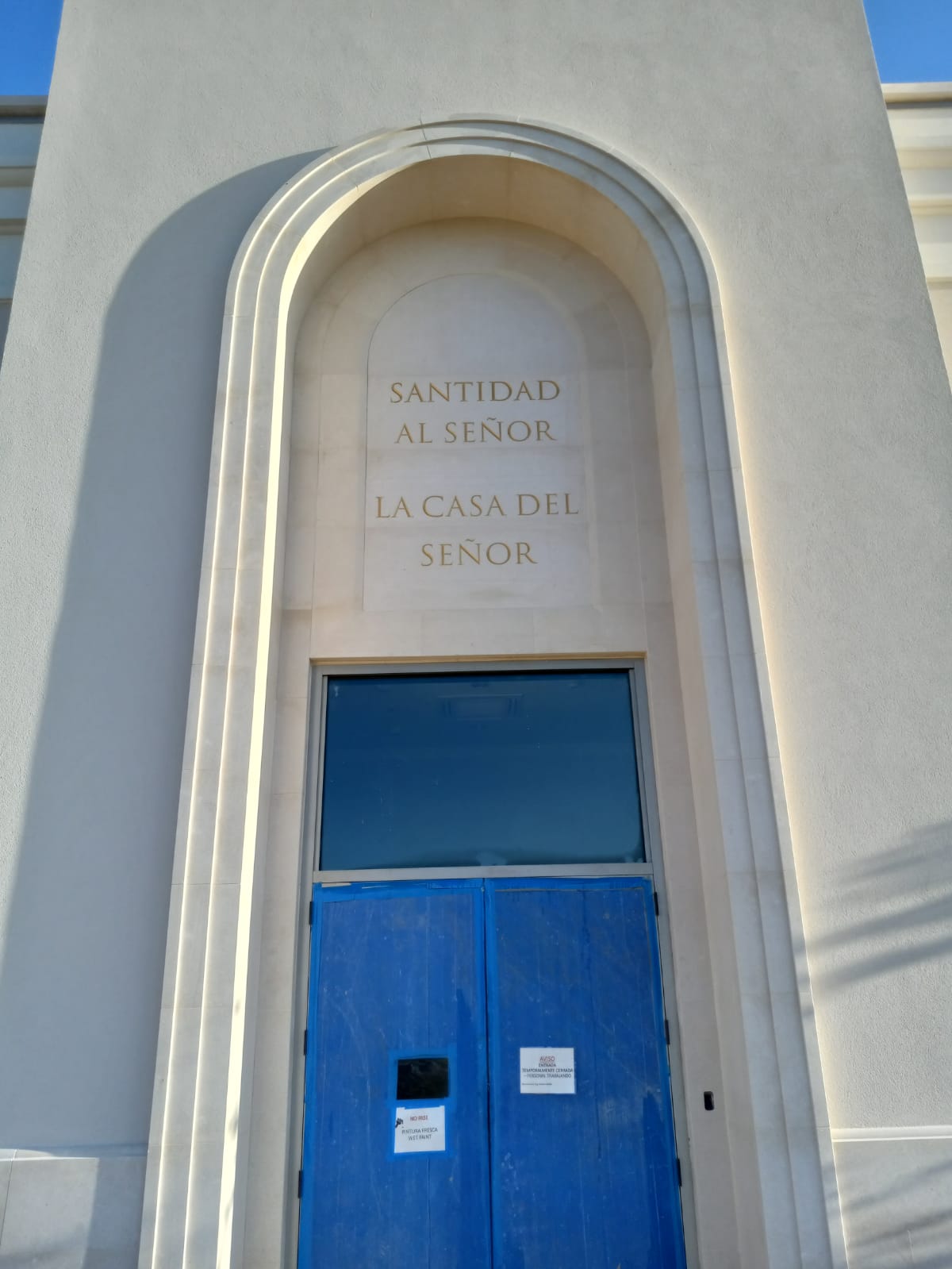

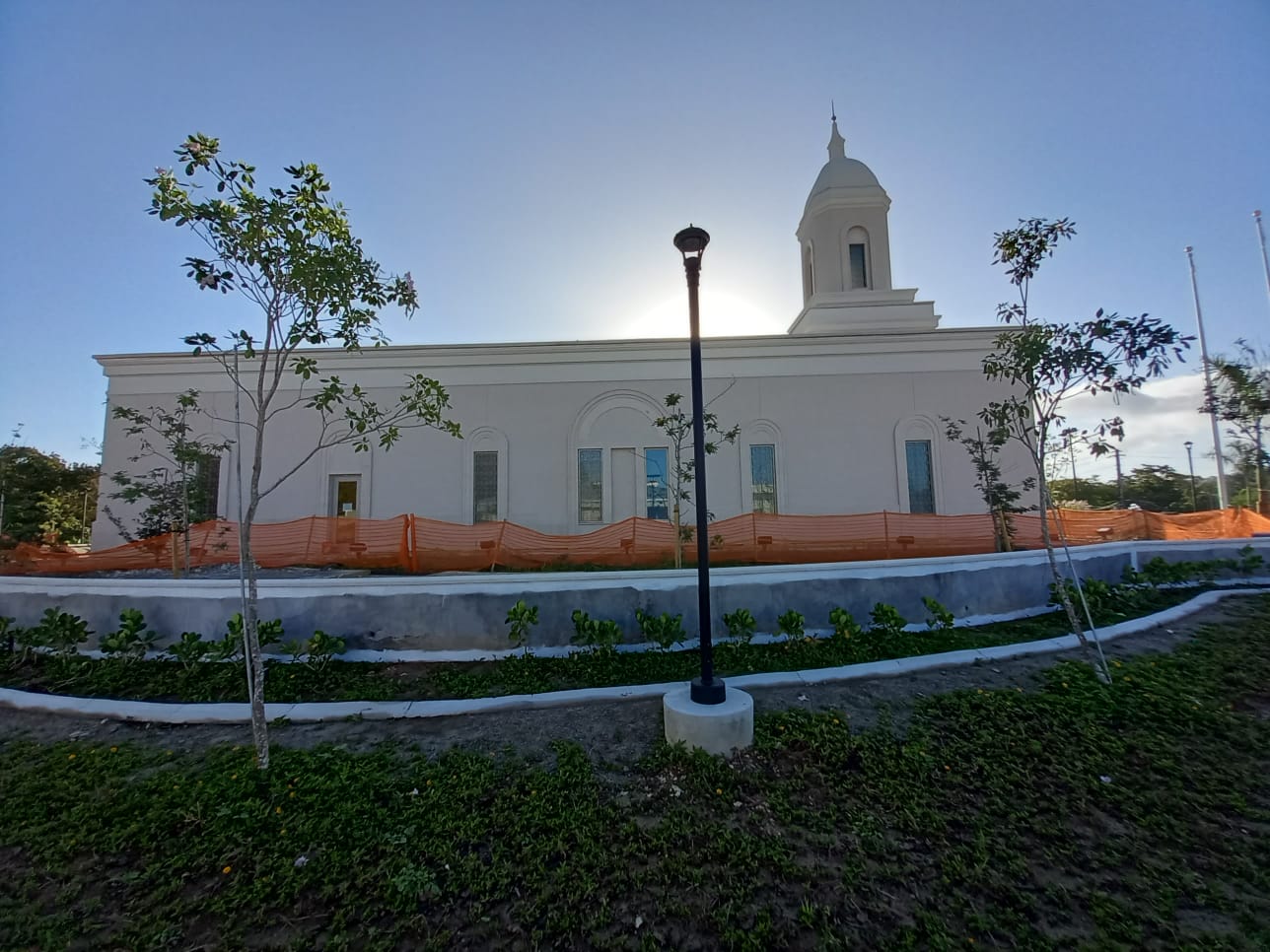

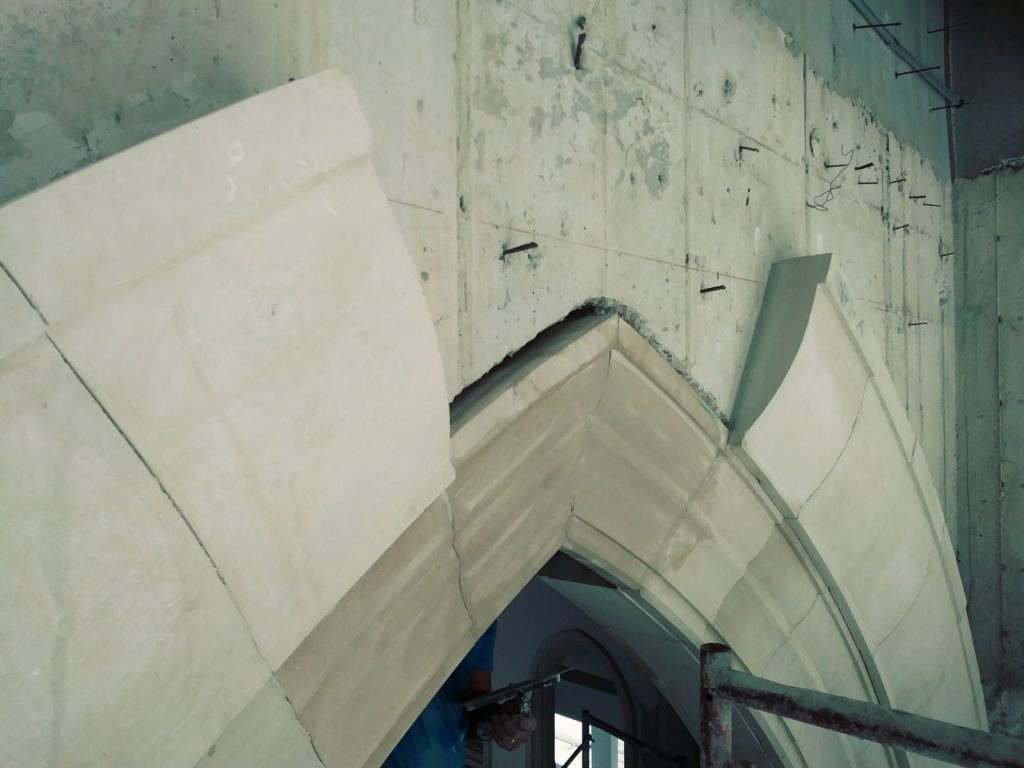

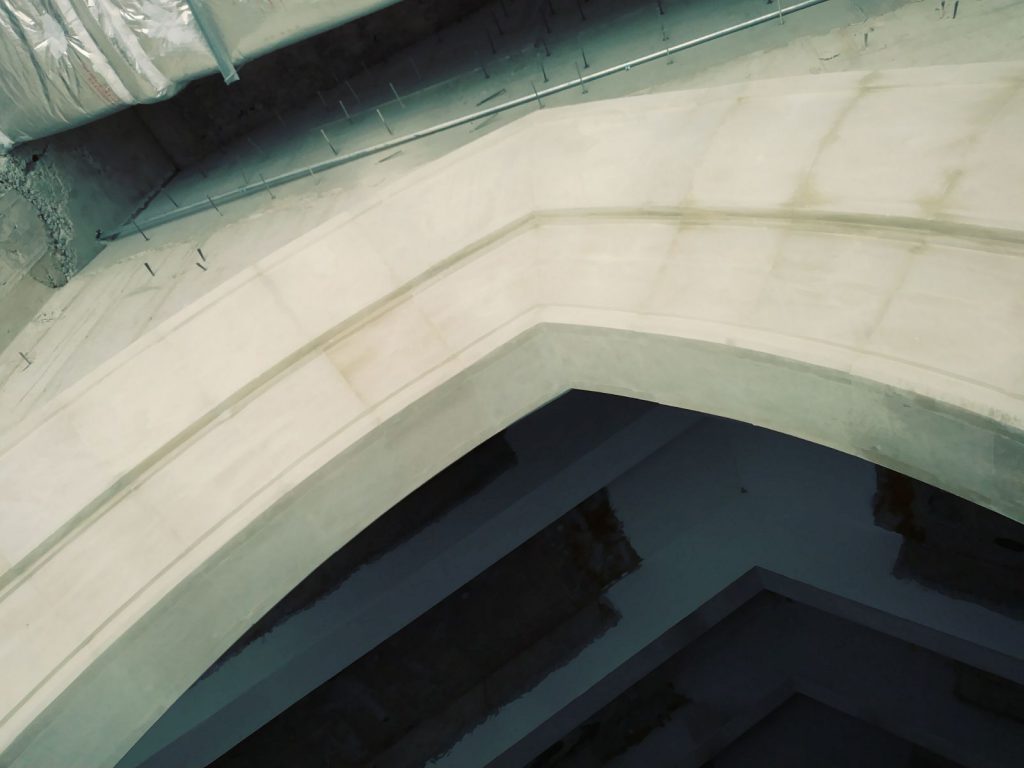

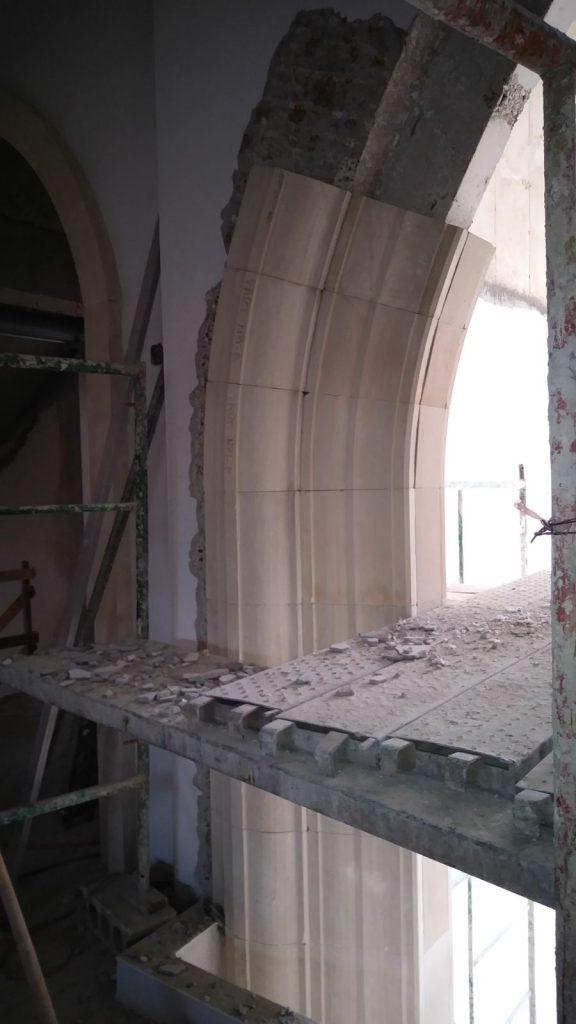

1. Behind the architectural concept of Stella Maris the verticalization of the structure is predominant because of its location in the area of Condado, San Juan Puerto Rico. As a result the main portals of the entrance and nartex reach the impressive height of thirty five feet. Based on the structural drawings IAE proposed the custom shop drawings for each architectural stone element that later became part of the official architectural drawings used for construction.

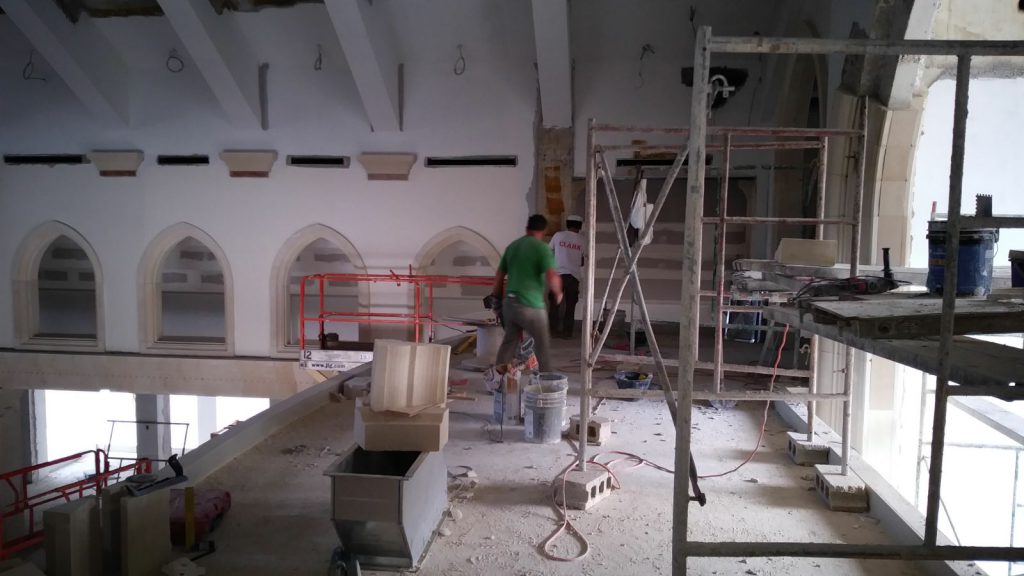

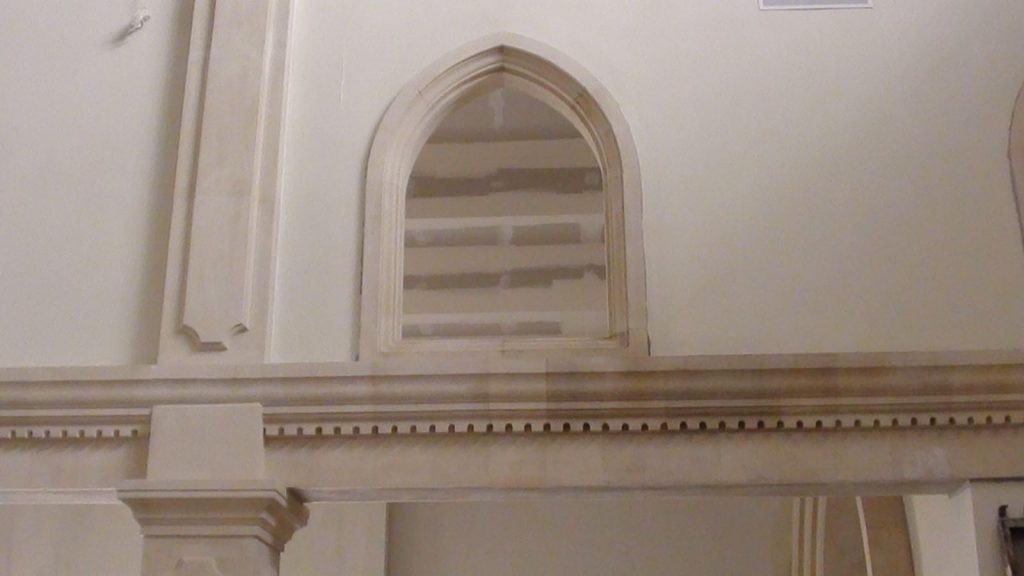

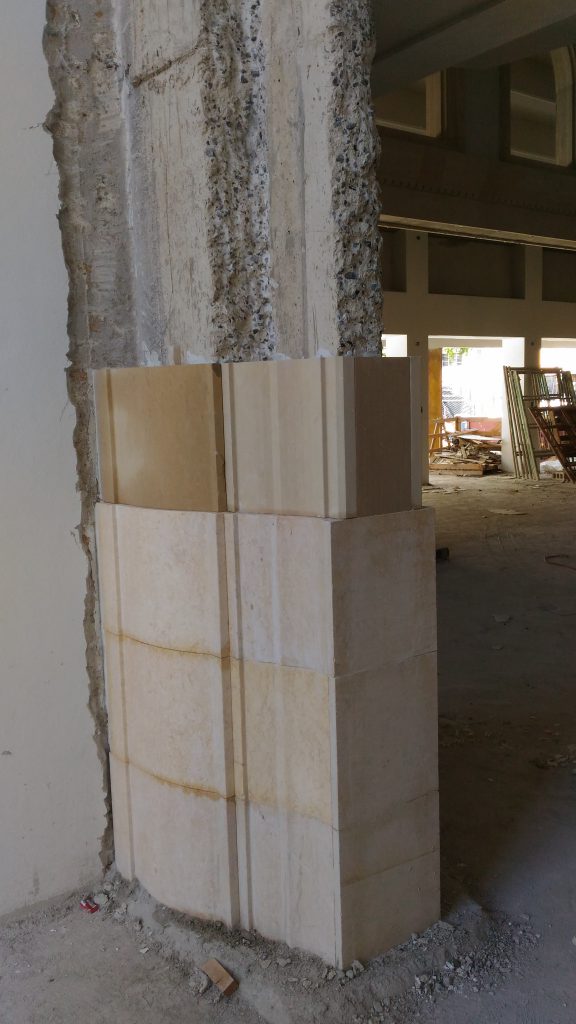

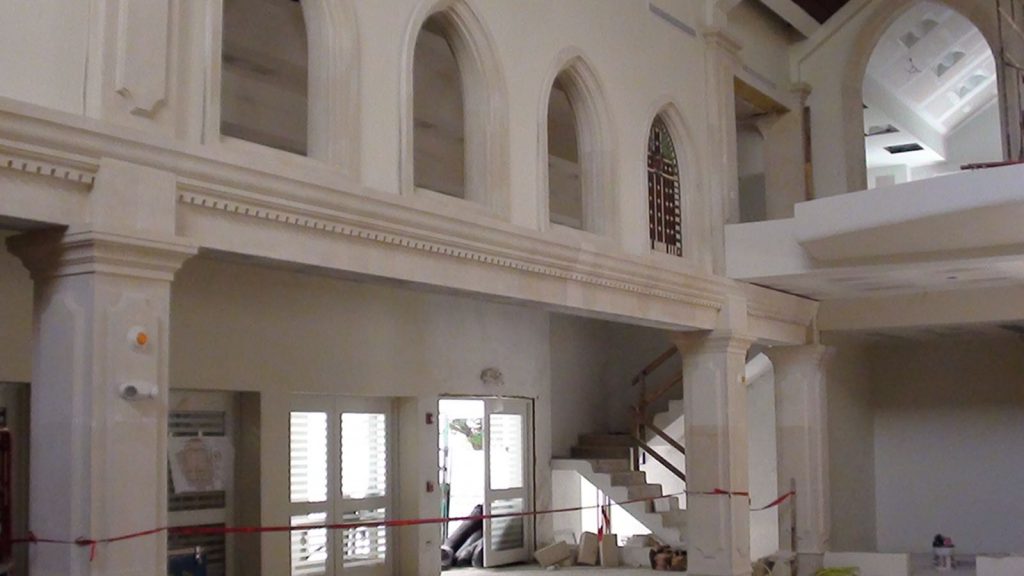

2. Inside the church, the columns along the central nave reach forty five feet and were constructed in two levels supporting the walls with the internal window openings.

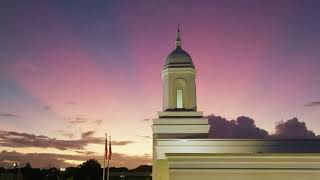

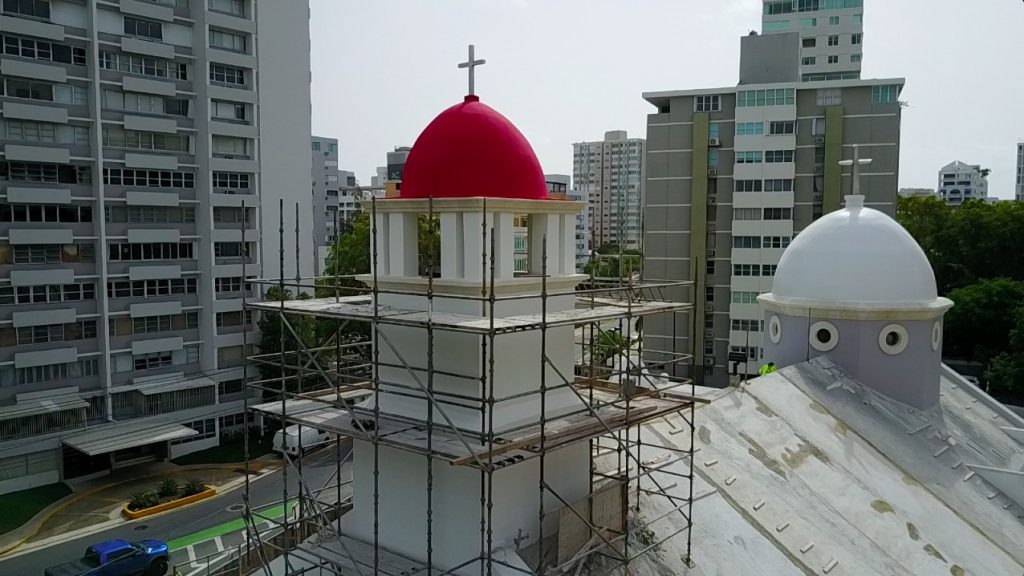

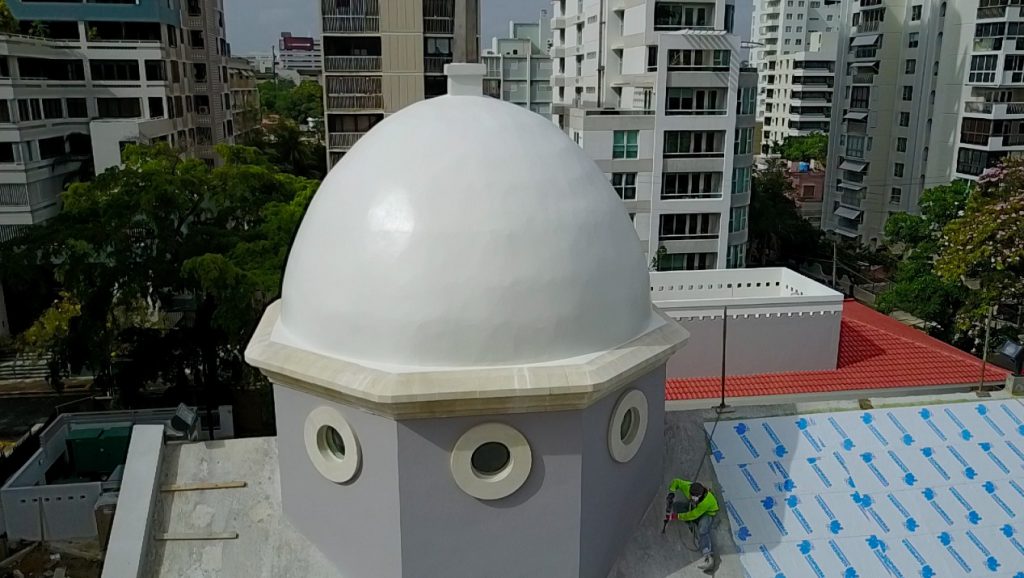

3. The base of the cupola which is sitting on an octagonal concrete structure has the external classic decorative stone frame.

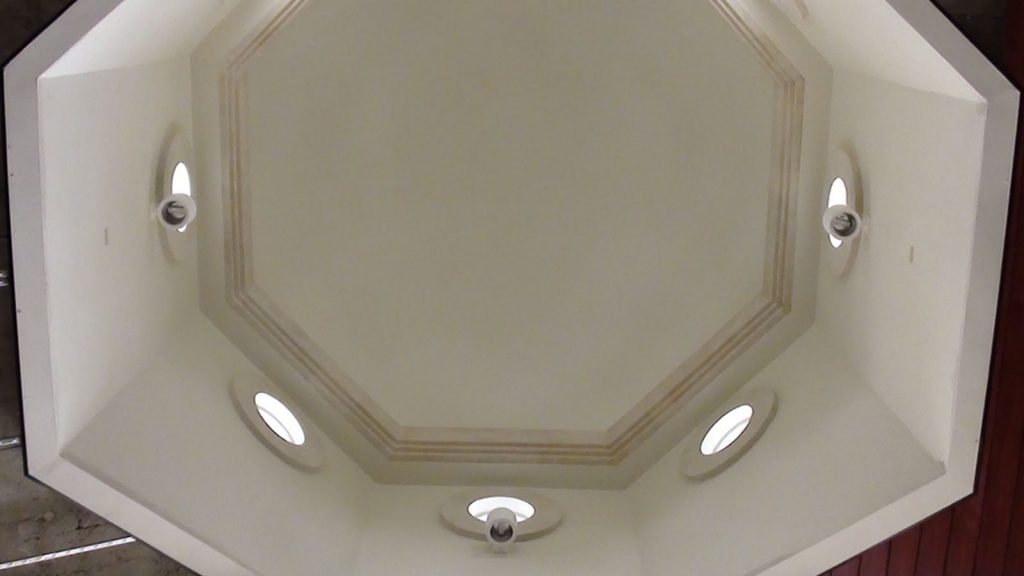

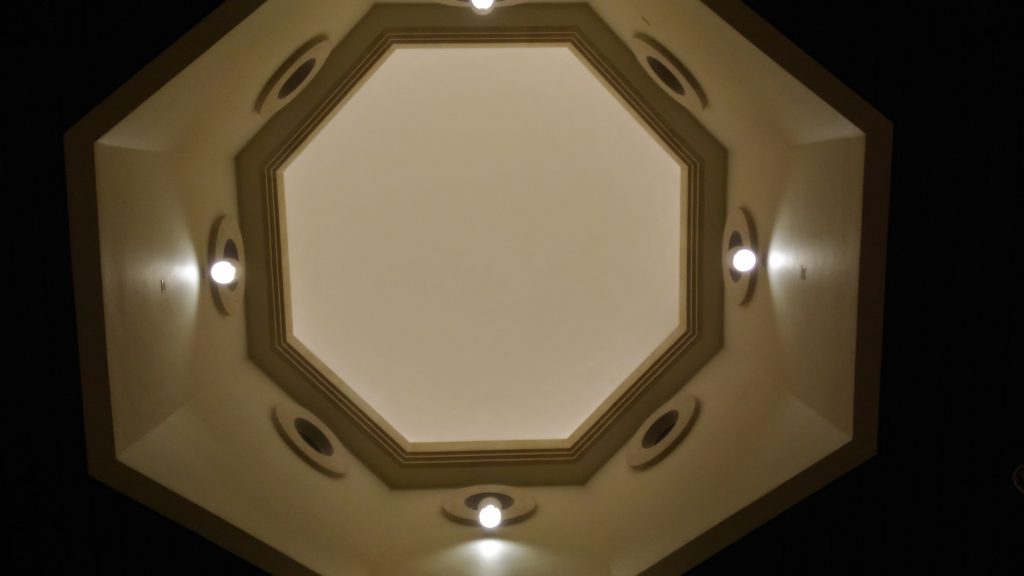

4. In the inside of the cupola a different stone frame is repeated while eight circular window frames allow the entrance of natural light from each wall supporting the cupola.

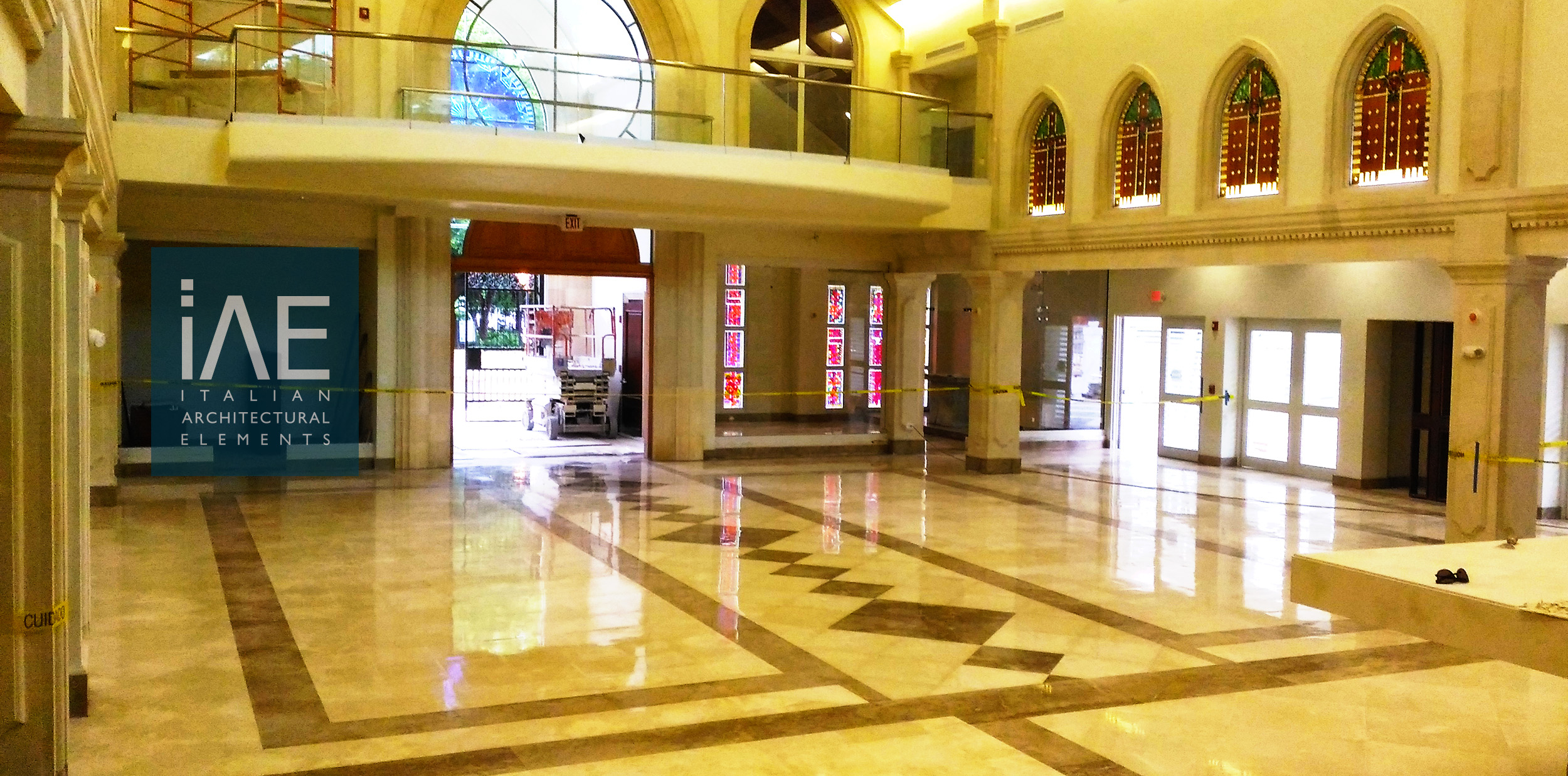

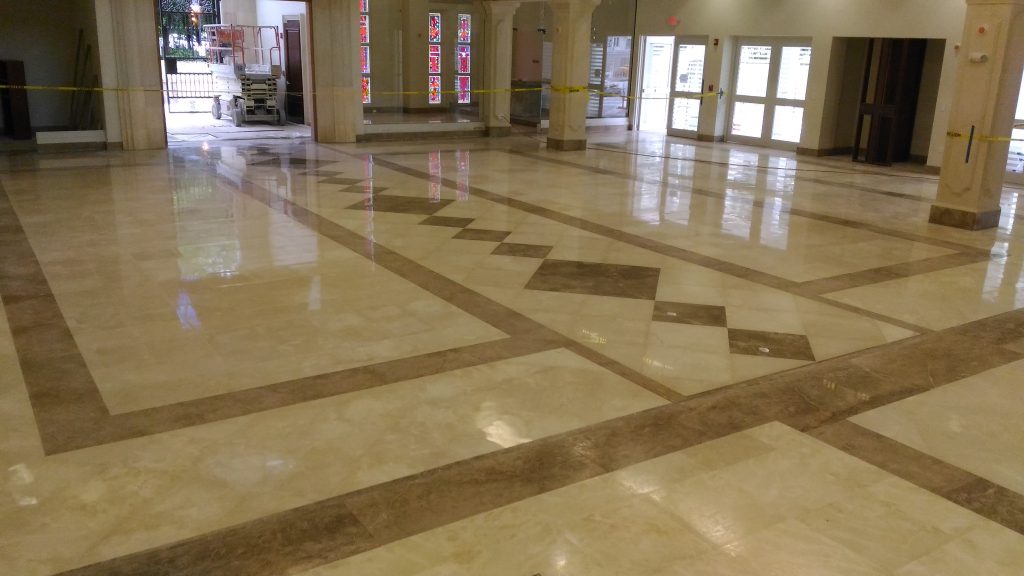

5. IAE completed the Stella Maris project with the supply and installation of the marble floor. The Spanish marble chosen for this structure was selected and cut in Spain by IAE, which insured to the final client the uniformity of the tonality of the stone needed for all the 8,000 square feet. The floor pattern is a design of IAE.

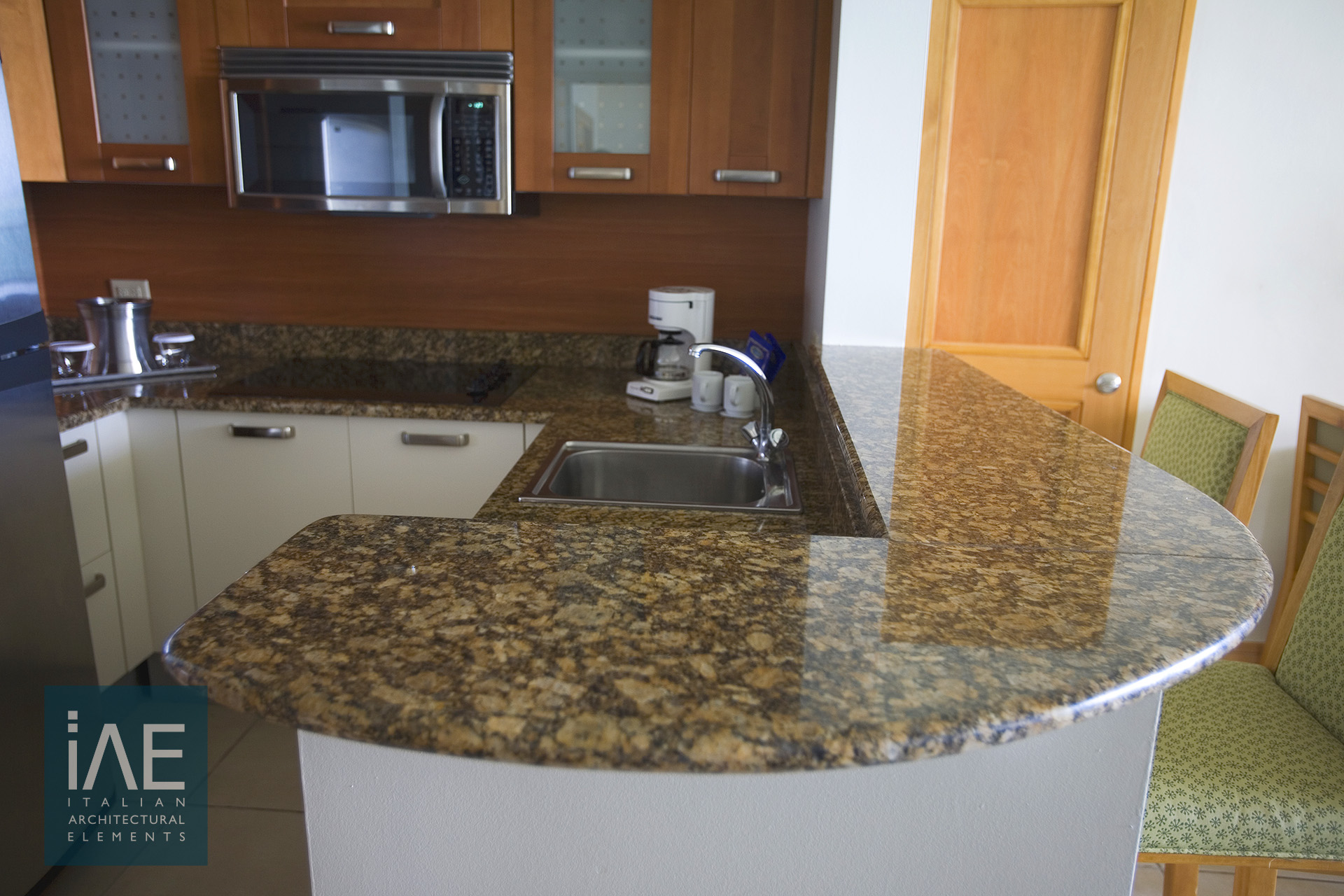

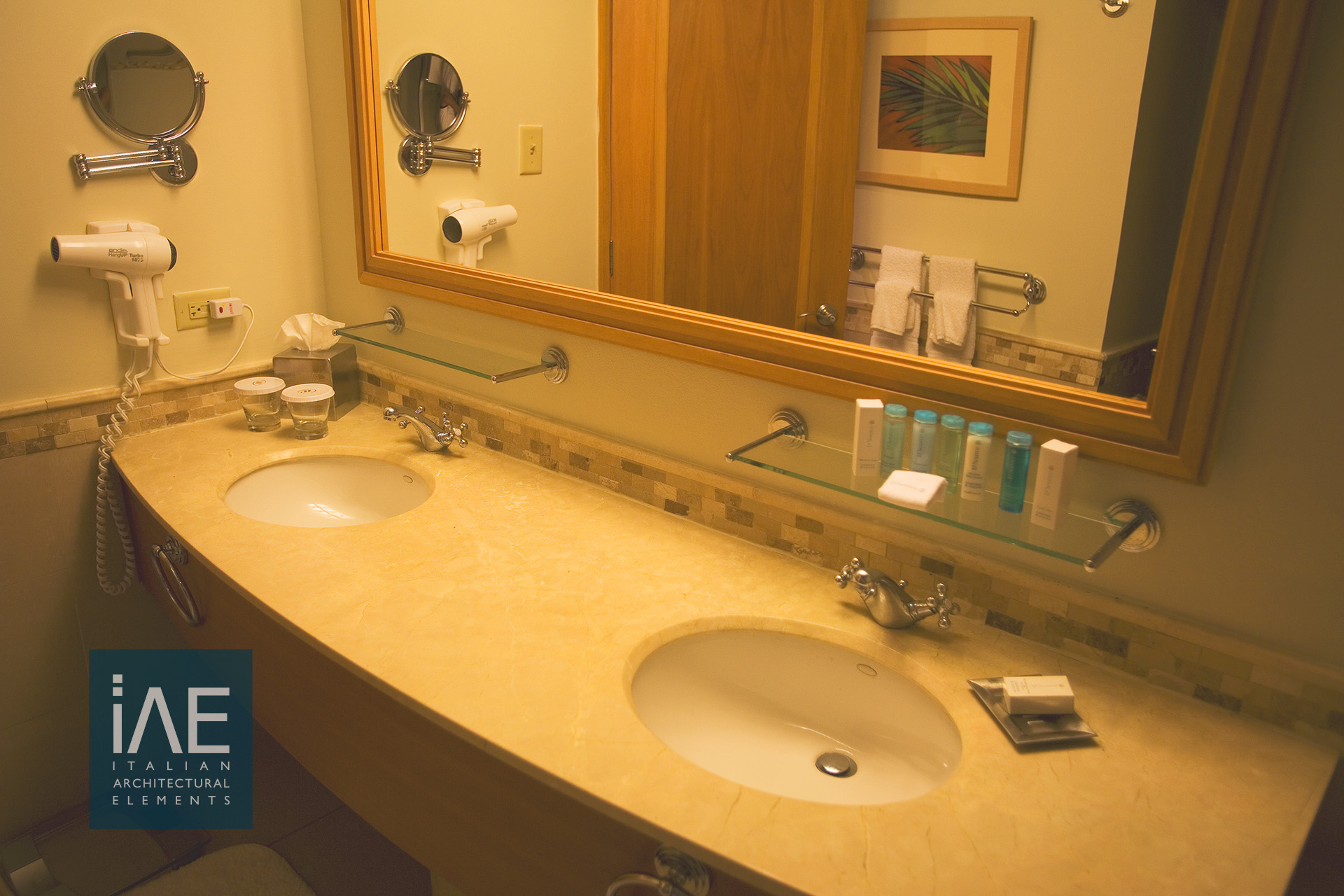

Brazilian granite kitchen countertops, spanish marble bathroom vanity tops and italian porcelain tiles were supplied and installed by Italian Architectural Elements (IAE).

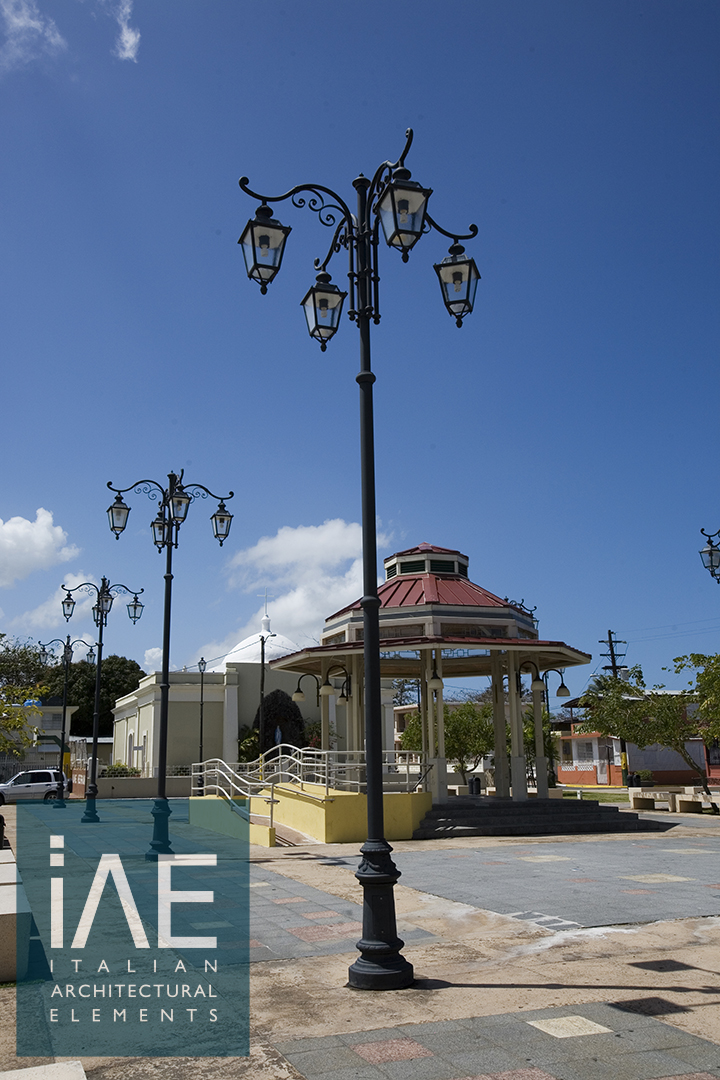

For this plaza forty thousand square feet of brazilian granite tiles were installed. The material was purchased and custom fabricated for IAE in the country of origin. Urban furniture and luminaries were also provided by IAE, exclusive distributor for the Caribbean region of FV Group.

For this project two beautiful classic italian marbles were selected and cut to custom dimensions in Carrara, Italy.

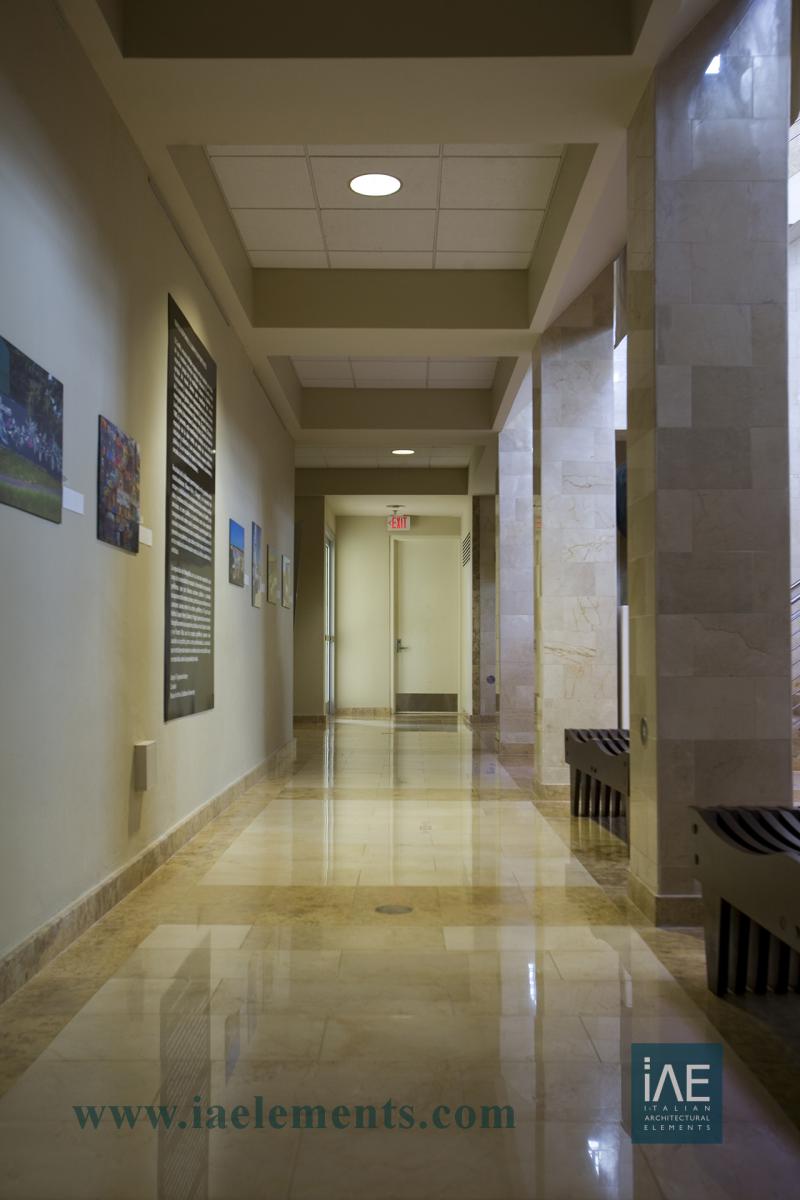

Thirty five thousand square feet of spanish marble were installed in floor and walls in this three story building.
